| مشخصات فنی Technical Specifications |
|

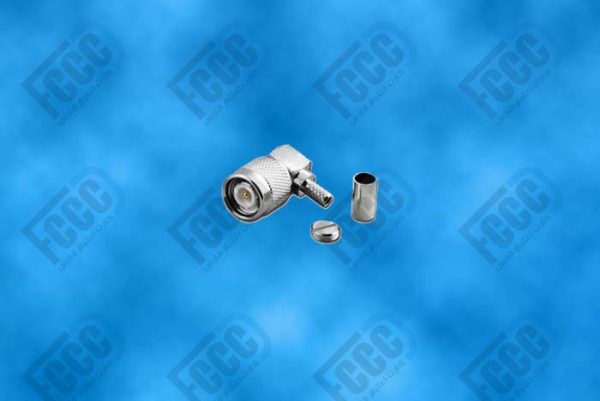

| Product | |
| NC Right Angle male connector for RG223 Cable | TNCMA-RG223 |
| Material and plating | |
| Brass / Silver Plating | Center contact |
| Brass / Trimetal Plating | Outer contact & Body |
| PTFE | Dielectric |
| Silicon Rubber | Gasket |
| Electrical data | |
| 50 Ω | Impedance |
| DC ~ 11 GHz | Frequency Range |
| ≥ 5000 MΩ | Insulation resistance |
| ≤1.5 mΩ | Center contact resistance |
| ≤1.0 mΩ | Outer contact resistance |
| 1500V rms (AC) | Dielectric Strength |
| 500V rms | Working voltage |
| 80W / 2GHz min | Power handling(at 20℃,sea level,VSWR 1.0) |
| ≤0.10dB@3GHz | Insertion Loss |
| ≤1.2@DC~3.0GHz | VSWR |
| Environmental and Mechanical Specifications | |
| ≥100 cycles | Durability (matings) |
| MIL-STD-202, Method 213, Test Condition G | Mechanical Shock Test Method |
| MIL-STD-202F, Meth. 107G, Cond. B | Thermal Shock Test Method |
| MIL-STD-202, Method 204, Cond. B | Vibration Test Method |
| -65°C to +165°C | Temperature Range |
| Compliant | RoHS |
