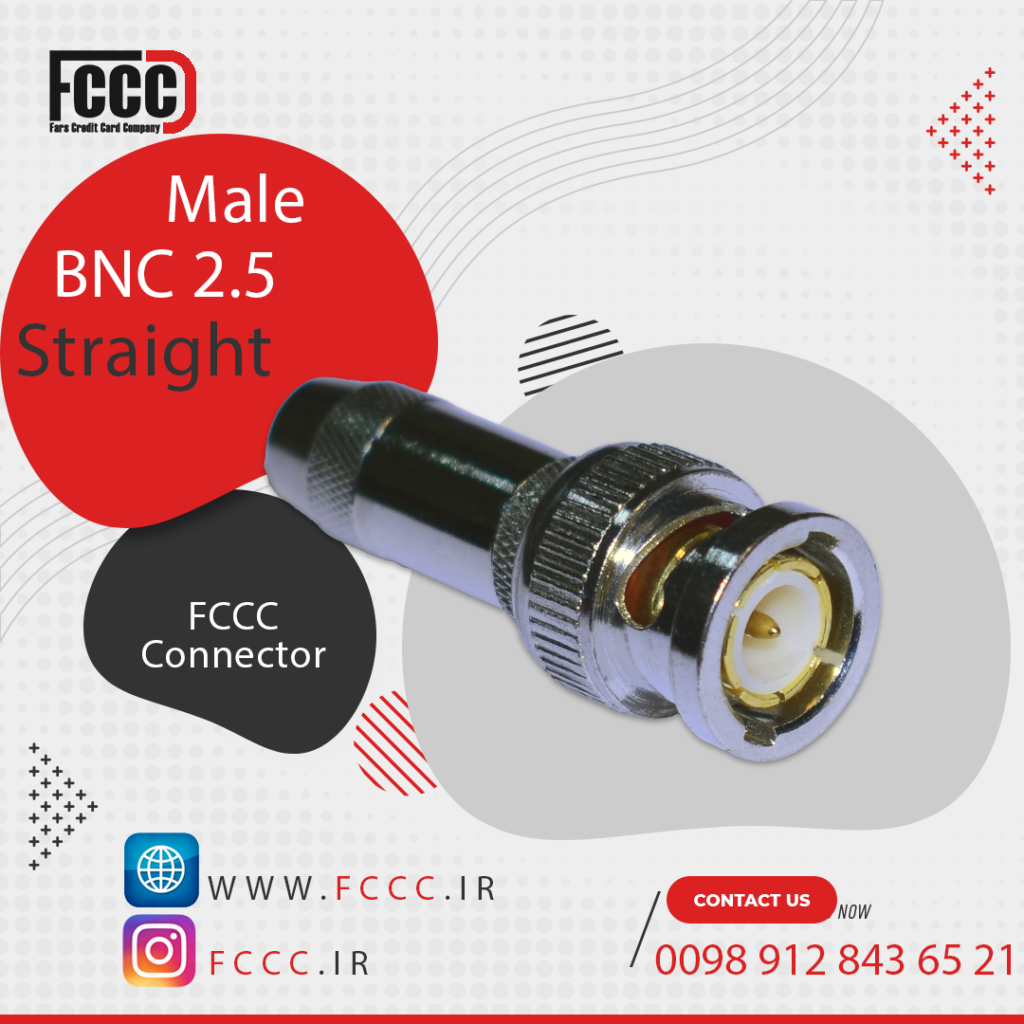

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to DIN EN 61169-8

Material and plating

Connector parts        Material                     Plating

Center contact             Brass                           AuroDur®, gold plated

Outer contact              Brass                           tri-metal

Body                           Brass                           tri-metal

Dielectric                     PTFE                           Nickel, 2.5-5 μm

Gasket                         NeopreneCR 50C6

Crimping ferrule         Copper

Electrical data

Impedance                                                        50 Ω

Frequency                                                        DC to 10 GHz

Return loss                                                       ≥ 30 dB, DC to 2.5 GHz

≥ 20 dB, 2.5 to 4 GHz

≥ 18 dB, 4 to 6 GHz

Insertion loss                                                    ≤  0.05 x √ f [GHz] dB, DC to 6 GHz

Insulation resistance                                          ≥ 5 x103 MΩ

Center contact resistance                                  ≤ 1.5 mΩ

Outer contact resistance                                    ≤ 1 mΩ

Working voltage (at sea level)                                          1500 V rms

Power handling (at 20 °C, sea level, VSWR 1.0)              ≤ 80 W @ 2 GHz



– Limitations are possible due to the used cable type –

Mechanical data

Mating cycles                                        ≥ 500

Center contact captivation: axial             ≥ 15 N

Environmental data

Temperature range                                -55 °C to +155 °C

Thermal shock                                      MIL-STD-202, Method 107, Condition B

Corrosion resistance                              MIL-STD-202, Method 101, Condition B

Vibration                                               MIL-STD-202, Method 204, Condition B

Shock                                                   MIL-STD-202, Method 213, Condition G

Moisture resistance                               MIL-STD-202, Method 106

2002/95/EC (RoHS)                               compliant

Weight

Weight                                                  10.8 g/pce
