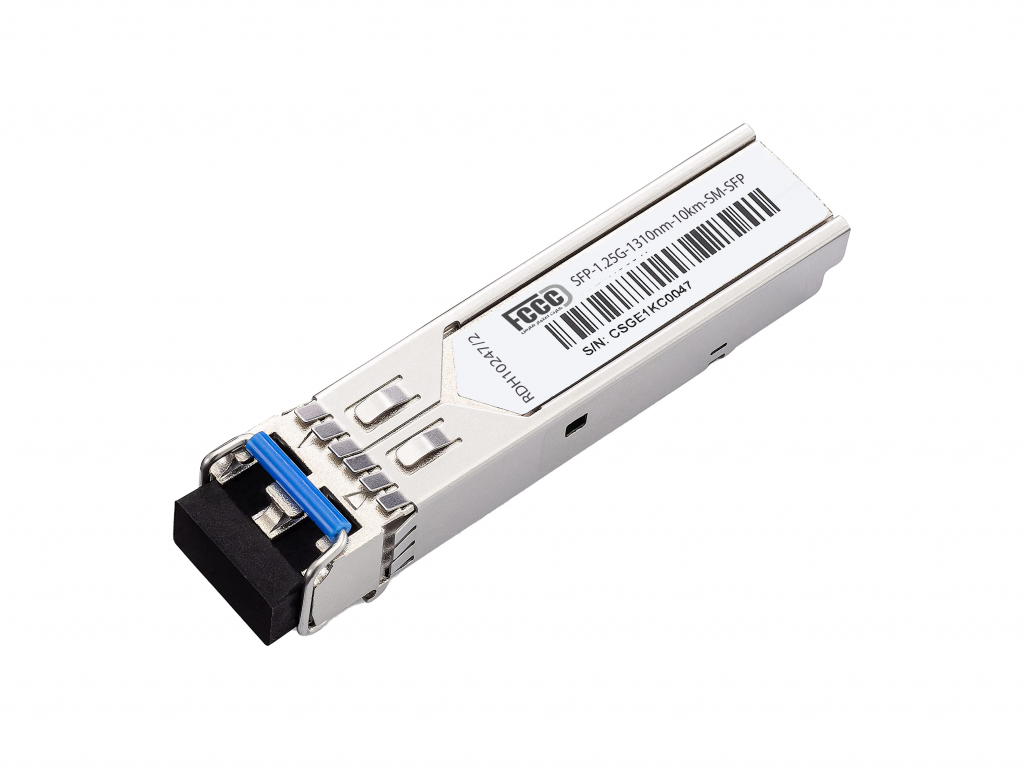

SFP-1.25G-1310nm-10km-SM



SFP-1.25G-1310nm-10km-SM-LC-DDM

1.25Gb/s 1310nm Single-mode SFP Transceiver

Part Number:

Ericsson Compatible RDH10247/2

Download DataSheet

SKU: RDH10247/2 Category: Tags: , , , , ,

PRODUCT DESCRIPTION

SFP-1.25G-1310nm-10km-SM-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the FP laser and the PIN photo-detector .The module data link up to 10km in 9/125um single mode fiber. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Ordering information

Product part Number Data Rate

(Mbps)

Media Wavelength

(nm)

Transmission

Distance(km)

Temperature RangeTcase)(
SFP-1.25G-1310nm-10km-SM-LC-DDM 1250 Single mode fiber 1310 20 0~70 commercial
SFP-1.25G-1310nm-10km-SM-LC-DDM 1250 Single mode fiber 1310 20 -10~80 extended
SFP-1.25G-1310nm-10km-SM-LC-DDM 1250 Single mode fiber 1310 20 -40~85 industrial
