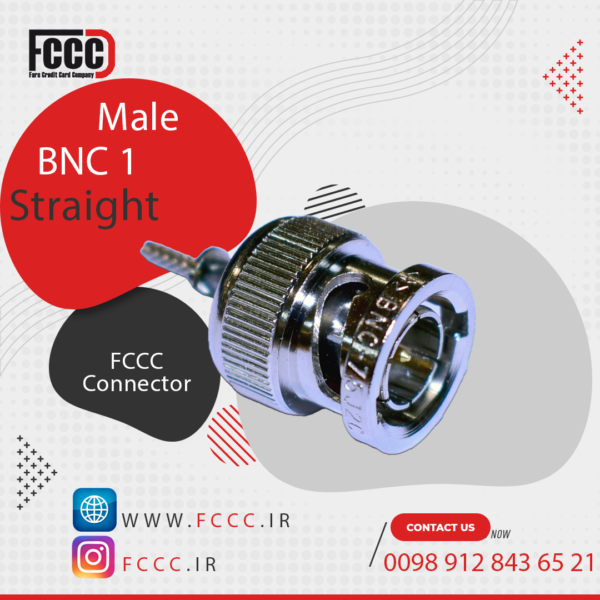

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to IEC 61169-16, MIL-PRF-39012, CECC 22210
Material and plating
Connector parts Material Plating
Center contact Spring bronze AuroDur®, gold plated
Outer contact Brass tri-metal
Body Brass tri-metal
Dielectric PTFE
Gasket NeopreneCR 50C6
Electrical data
Impedance 50 Ω
Frequency DC to 11 GHz
Return loss ≥ 25 dB, DC to 3 GHz
≥ 20 dB, 3 to 5 GHz
Insertion loss ≥ 0.05 dB, DC to 5 GHz
Insulation resistance ≥ 5 x103 MΩ
Center contact resistance ≤ 1 mΩ
Outer contact resistance ≤ 0.25 mΩ
Test voltage 2500 V rms
Working voltage (at sea level) 1400 V rms
Power handling (at 20 °C, sea level, VSWR 1.0) 700 W @ 2 GHz
≥ 128 dB up to 1 GHz
– Limitations are possible due to the used cable type –
Mechanical data
Mating cycles min. 500
Coupling nut retention ≥ 450 N
Coupling test torque max. 1.7 Nm
Recommended torque 0.7 Nm to 1.1 Nm
Environmental data
Temperature range -55 °C to +85 °C
Thermal shock MIL-STD-202, Method 107, Condition B
Corrosion resistance MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Shock MIL-STD-202, Method 213, Condition G
Moisture resistance MIL-STD-202, Method 106
Degree of protection (mated pair) IEC 60529, IP65
2002/95/EC (RoHS) compliant
Weight
Weight 71 g/pce
