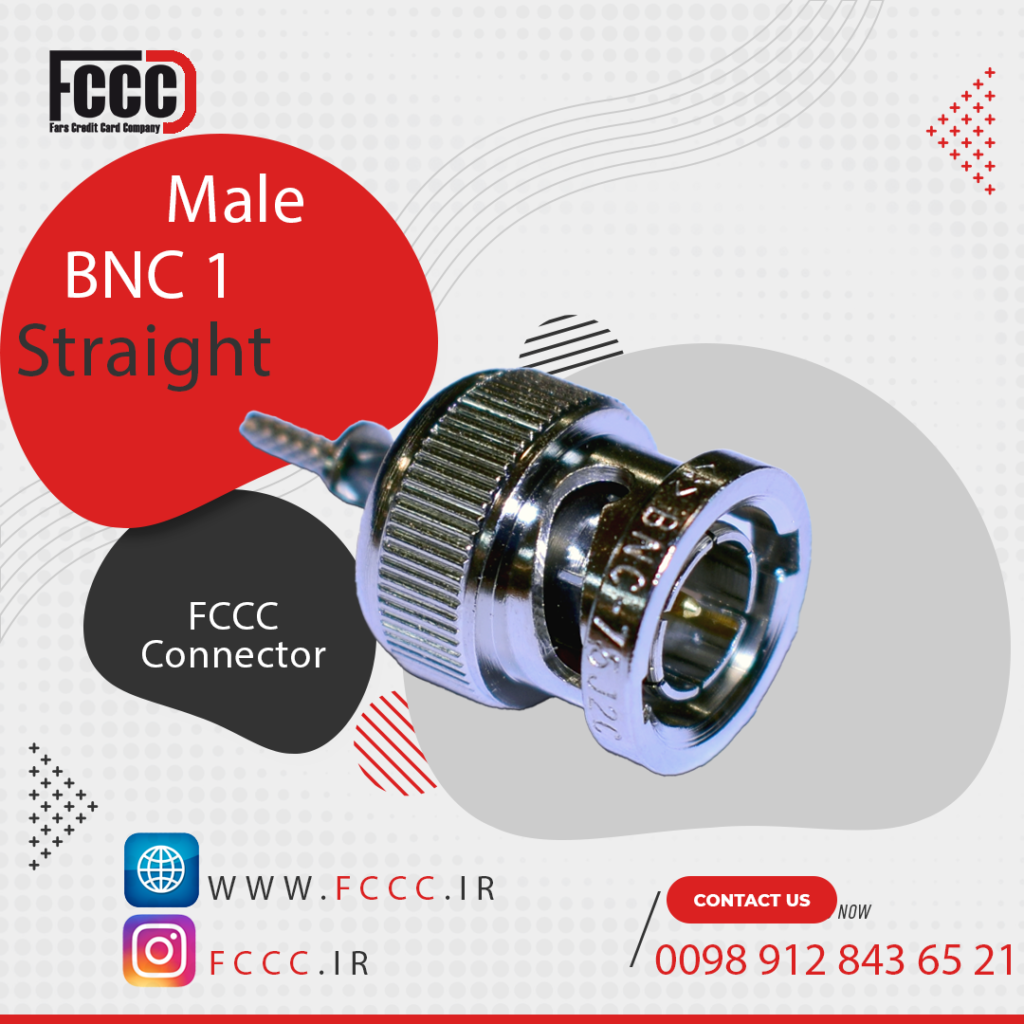

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to DIN EN 61169-8
Material and plating
Connector parts Material Plating
Center contact Spring bronze AuroDur®, gold plated
Outer contact Brass tri-metal
Body Brass tri-metal
Dielectric PTFE
Gasket NeopreneCR 50C6
Crimping ferrule Copper
Electrical data
Impedance 50 Ω
Frequency DC to 10 GHz
Return loss ≥ 22 dB, DC to 1 GHz
≥ 17 dB, 1 to 2 GHz
≥ 14 dB, 2 to 4 GHz
Insertion loss ≤ 0.07 x √ f [GHz] dB, DC to 2 GHz
Insulation resistance ≥ 5 x103 MΩ
Center contact resistance ≤ 1.5 mΩ
Outer contact resistance ≤ 1 mΩ
Test voltage 1500 V rms
Working voltage (at sea level) 400 V rms
Power handling (at 20 °C, sea level, VSWR 1.0) ≤ 80 W @ 2 GHz
– Limitations are possible due to the used cable type –
Mechanical data
Mating cycles ≥ 500
Center contact captivation: axial ≥ 15 N
Environmental data
Temperature range -45 °C to +85 °C
Thermal shock MIL-STD-202, Method 107, Condition B
Corrosion resistance MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Shock MIL-STD-202, Method 213, Condition G
Moisture resistance MIL-STD-202, Method 106
2002/95/EC (RoHS) compliant
Weight
Weight 10.3 g/pce
